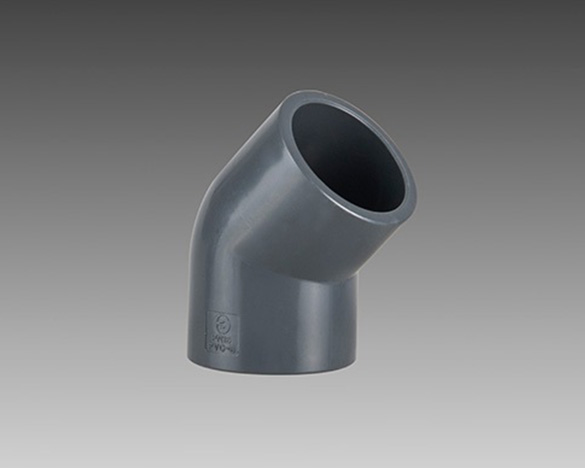

化工45度彎頭
產品中心
詳情頁
45度彎頭PN16

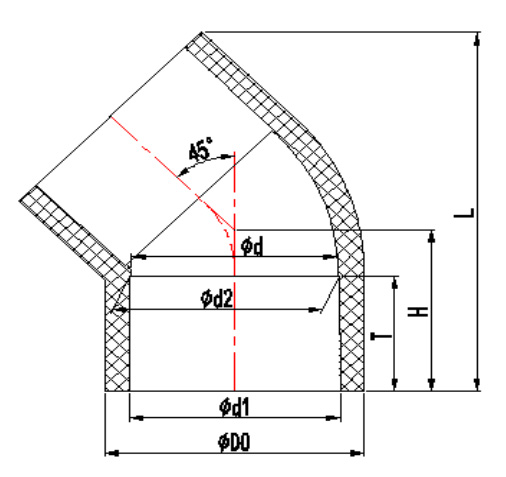

| DN（De） | 外形尺寸 | ||||||
| D0 | d1 | d2 | d | T | H | L | |
| 15(20) | 26.30 | 20.30 | 19.95 | 18.00 | 16.20 | 22.10 | 46.90 |
| 20(25) | 31.80 | 25.30 | 24.95 | 23.00 | 18.70 | 25.70 | 54.90 |
| 25(32) | 38.60 | 32.30 | 31.90 | 30.00 | 22.20 | 30.60 | 66.20 |
| 32(40) | 49.70 | 40.40 | 39.90 | 38.00 | 26.20 | 36.30 | 79.30 |
| 40(50) | 61.90 | 50.40 | 49.90 | 48.00 | 31.20 | 43.30 | 95.70 |
| 50(63) | 77.50 | 63.40 | 62.90 | 61.00 | 37.70 | 52.50 | 116.90 |
| 65(75) | 91.20 | 75.40 | 74.90 | 70.90 | 43.70 | 64.60 | 142.50 |
| 80(90) | 107.60 | 90.50 | 89.90 | 85.90 | 51.20 | 75.60 | 166.90 |
| 100(110) | 127.00 | 110.60 | 109.90 | 103.90 | 61.20 | 89.20 | 197.60 |
| De125 | 144.30 | 125.70 | 124.90 | 118.90 | 68.70 | 100.70 | 222.90 |
| 125(140) | 161.60 | 140.80 | 139.90 | 133.90 | 76.20 | 112.40 | 248.90 |
| 150(160) | 184.60 | 160.80 | 159.90 | 153.90 | 86.20 | 126.90 | 281.90 |
| De180 | 202.60 | 180.90 | 179.90 | 178.50 | 97.00 | 137.90 | 307.00 |
| De200 | 230.50 | 201.00 | 199.90 | 193.50 | 106.20 | 157.10 | 349.50 |
| 200(225) | 259.40 | 226.20 | 224.90 | 216.90 | 118.70 | 175.70 | 391.50 |
| De250 | 287.90 | 251.30 | 249.90 | 241.90 | 131.20 | 193.30 | 432.20 |
| 250(280) | 314.80 | 281.50 | 279.90 | 278.00 | 147.00 | 209.60 | 469.10 |
| 300(315) | 358.20 | 316.70 | 314.90 | 306.90 | 163.70 | 242.80 | 541.20 |
| 350(355) | 391.00 | 356.80 | 355.00 | 326.00 | 184.00 | 272.80 | 602.20 |
| 400(400) | 442.00 | 402.00 | 400.00 | 369.80 | 204.20 | 298.50 | 662.20 |
| 產品名稱 | 尺寸 | 包裝量 | 長（cm) | 寬 | 高 |
| 45度彎頭PN16 | DN15 | 760 | 43.5 | 31 | 30 |
| DN20 | 450 | 43.5 | 31 | 30 | |
| DN25 | 240 | 43.5 | 31 | 30 | |
| DN32 | 160 | 43.5 | 31 | 30 | |
| DN40 | 90 | 43.5 | 31 | 30 | |
| DN50 | 45 | 43.5 | 31 | 30 | |
| DN65 | 30 | 48.5 | 36 | 32 | |
| DN80 | 24 | 53 | 38 | 35.5 | |
| DN100 | 16 | 53 | 38 | 38 | |
| De125 | 8 | 39 | 33 | 47 | |
| DN125 | 8 | 43.5 | 36 | 51.5 | |
| DN150 | 6 | 57 | 51 | 31 | |
| De200 | 2 | 48.5 | 36 | 32 | |
| DN200 | 2 | 36 | 34 | 40 | |
| De250 | 2 | 59 | 42.5 | 46 | |
| DN250 | 2 | 65 | 43 | 48.5 | |
| DN300 | 1 | 46.5 | 39.5 | 57.5 | |
| DN350 | 1 | 53.5 | 39.5 | 63.5 | |
| DN400 | 1 | 59.5 | 45 | 70 |
