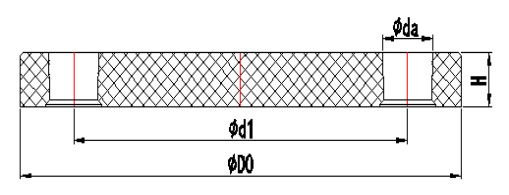

盲板PN16
| 尺寸 DN（De） | 外形尺寸（mm） | ||||
| D0 | d1 | da | H | n | |
| 15(20) | 95.00 | 65.00 | 14.00 | 12.50 | 4 |
| 20(25) | 105.00 | 75.00 | 14.00 | 13.40 | 4 |
| 25(32) | 115.00 | 85.00 | 14.00 | 14.00 | 4 |
| 32(40) | 140.00 | 100.00 | 18.00 | 14.40 | 4 |
| 40(50) | 150.00 | 110.00 | 18.00 | 16.40 | 4 |
| 50(63) | 165.00 | 125.00 | 18.00 | 16.20 | 4 |
| 65(75) | 185.00 | 145.00 | 18.00 | 17.50 | 4 |
| 80(90) | 200.00 | 160.00 | 18.00 | 18.00 | 8 |
| 100(110) | 220.00 | 180.00 | 18.00 | 22.00 | 8 |
| 150(160) | 285.00 | 240.00 | 22.00 | 28.00 | 8 |
| De200 | 340.00 | 295.00 | 22.00 | 32.00 | 8 |
| De250 | 405.00 | 350.00 | 22.00 | 29.00 | 12 |
| 300(315) | 445.00 | 400.00 | 22.00 | 31.50 | 12 |
| 350(355) | 510.00 | 450.00 | 24.00 | 40.00 | 16 |
| 400(400) | 570.00 | 500.00 | 27.00 | 42.00 | 16 |
| 產(chǎn)品名稱 | 尺寸 | 包裝量 | 長（cm) | 寬(cm) | 高(cm) |
| 盲板PN16 | DN15 | 252 | 39 | 30 | 28.5 |
| DN20 | 180 | 39 | 30 | 28.5 | |
| DN25 | 133 | 39 | 30 | 28.5 | |
| DN32 | 95 | 39 | 30 | 28.5 | |
| DN40 | 85 | 43.5 | 31 | 30 | |
| DN50 | 51 | 39 | 30 | 28.5 | |
| DN65 | 30 | 39 | 30 | 28.5 | |
| DN80 | 30 | 39 | 30 | 28.5 | |
| DN100 | 30 | 43.5 | 31 | 30 | |
| DN150 | 12 | 32 | 32 | 28 | |
| DN200 | 8 | 36 | 36 | 26 | |
| DN250 | 3 | 41 | 41 | 52.5 | |
| DN300 | 2 | ||||
| DN350 | 1 | ||||
| DN400 | 1 |
