四通PN16

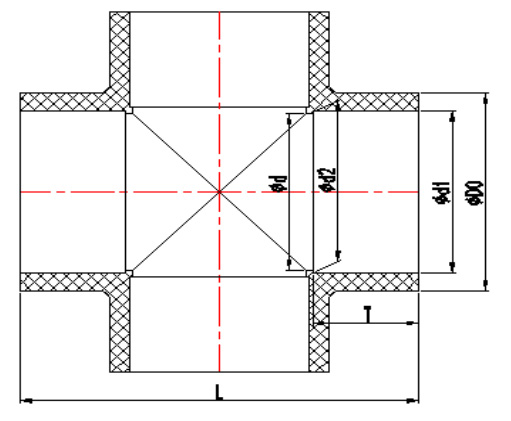

| 尺寸 DN（De） | 外形尺寸（mm） | |||||
| D0 | d1 | d2 | d | T | L | |
| 15(20) | 26.30 | 20.30 | 19.95 | 18.00 | 16.20 | 55.40 |
| 20(25) | 31.80 | 25.30 | 24.95 | 21.00 | 18.70 | 65.40 |
| 25(32) | 39.90 | 32.30 | 31.90 | 28.00 | 22.20 | 79.40 |
| 32(40) | 49.50 | 40.35 | 39.90 | 36.00 | 26.20 | 95.40 |
| 40(50) | 61.50 | 50.35 | 49.90 | 46.00 | 31.20 | 115.40 |
| 50(63) | 77.40 | 63.40 | 62.90 | 59.00 | 37.70 | 141.00 |
| 65(75) | 91.20 | 75.40 | 74.90 | 70.90 | 43.70 | 165.00 |
| 80(90) | 107.60 | 90.50 | 89.90 | 85.90 | 51.20 | 194.50 |
| 100(110) | 127.00 | 110.60 | 109.90 | 103.90 | 61.20 | 234.50 |
| De125 | 144.30 | 125.70 | 124.90 | 118.90 | 68.70 | 263.80 |
| 125(140) | 161.60 | 140.75 | 139.90 | 133.90 | 76.20 | 295.00 |
| 150(160) | 185.30 | 160.80 | 159.90 | 153.90 | 86.20 | 336.00 |
| De200 | 230.00 | 201.00 | 199.90 | 193.90 | 106.20 | 414.00 |
| 200(225) | 259.40 | 226.20 | 224.90 | 216.90 | 118.70 | 465.00 |
| De250 | 287.90 | 251.30 | 249.90 | 241.40 | 131.20 | 515.50 |
| 300(315) | 354.00 | 316.70 | 314.90 | 307.00 | 163.70 | 643.00 |
| 產品名稱 | 尺寸 | 包裝量 | 長（cm) | 寬(cm) | 高(cm) |
| 四通PN16 | DN15 | 300 | 43.5 | 31 | 30 |
| DN20 | 180 | 43.5 | 31 | 30 | |
| DN25 | 125 | 43.5 | 31 | 30 | |
| DN32 | 81 | 43.5 | 31 | 30 | |
| DN40 | 72 | 53 | 38 | 35.5 | |
| DN50 | 30 | 44 | 44 | 31 | |
| DN65 | 24 | 53 | 38 | 35.5 | |
| DN80 | 12 | 40.5 | 37 | 41.5 | |
| DN100 | 12 | 49.5 | 40 | 49.5 | |
| De125 | 8 | 54 | 31 | 53 | |
| DN125 | 6 | 61 | 50 | 32 | |
| DN150 | 3 | 57 | 35 | 36 | |
| De200 | 2 | 47 | 47 | 43.5 | |
| DN200 | 2 | 54 | 49 | 49 | |
| De250 | 1 | 57 | 32 | 54 | |
| DN300 | 1 | 67 | 38 | 67 |
