PVC絲口球閥
產品中心
詳情頁| 產品名稱 | PVC絲口球閥 |
| 材料 | PP/UPVC/TPE+PP |
| 尺寸 | 1"~4" |
| 顏色 | 深灰 |
| 連接 | 內絲 |
| 壓力 | 10kg/16kg |
| 標準 | DIN, BS, ANSI, CNS; NPT, BSPT, JIS |
| 認證證書 | ISO9001,SGS,CE, NSF, ISO14001 |
| 使用溫度 | -20℃~60℃ |
(DIN)

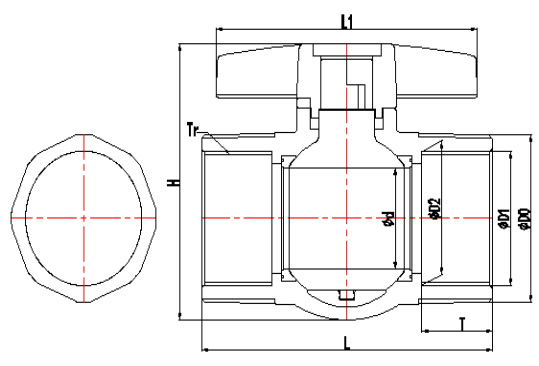

| Dimension（mm） | |||||||||
| Size（De*"） | D0 | D1 | D2 | d | T | H | L1 | L | Tr |
| 20*1/2" | 31.60 | 18.35 | 18.76 | 15.00 | 17.00 | 60.00 | 70.00 | 74.00 | 1/2" |
| 25*3/4" | 37.70 | 23.90 | 24.10 | 20.00 | 19.50 | 68.00 | 80.00 | 85.00 | 3/4" |
| 32*1" | 45.50 | 30.70 | 31.00 | 25.00 | 23.00 | 80.00 | 92.00 | 98.00 | 1" |
| 40*1-1/4" | 54.80 | 39.10 | 39.60 | 30.00 | 27.00 | 90.00 | 112.00 | 112.50 | 1-1/4" |
| 50*1-1/2" | 62.00 | 44.50 | 45.00 | 34.00 | 32.00 | 105.00 | 114.00 | 128.00 | 1-1/2" |
| 63*2" | 74.80 | 56.10 | 56.60 | 45.00 | 36.00 | 123.00 | 134.00 | 149.00 | 2" |
| 75*2-1/2" | 92.20 | 71.96 | 72.20 | 55.00 | 40.00 | 156.00 | 190.00 | 168.00 | 2-1/2" |
| 90*3" | 106.70 | 54.40 | 85.10 | 67.00 | 48.00 | 178.00 | 220.00 | 195.00 | 3" |
| 110*4" | 135.20 | 109.50 | 110.00 | 93.00 | 54.00 | 208.50 | 250.00 | 244.00 | 4" |
包裝
| 序號 | 描述 | 尺寸 | 個/箱 | 單重 (g/pcs) | 長(cm) | 寬 | 高 |
| 1 | PVC絲口球閥 | De20 | 200 | 98.98 | 34.5 | 32 | 32.5 |
| 2 | De25 | 160 | 128.09 | 36.5 | 31.5 | 37 | |
| 3 | De32 | 90 | 205.59 | 42.5 | 29 | 32 | |
| 4 | De40 | 60 | 334.60 | 39 | 29 | 36 | |
| 5 | De50 | 40 | 444.56 | 45 | 32 | 27.5 | |
| 6 | De63 | 20 | 692.77 | 38.5 | 29 | 32 | |
| 7 | De75 | 15 | 1140.22 | 50.5 | 44.5 | 25.5 | |
| 8 | De90 | 10 | 1863.48 | 54 | 40.5 | 29.5 | |
| 9 | De110 | 6 | 3073.11 | 51 | 37 | 35 |
