產品中心詳情頁
給水雙承異徑
產品中心
詳情頁

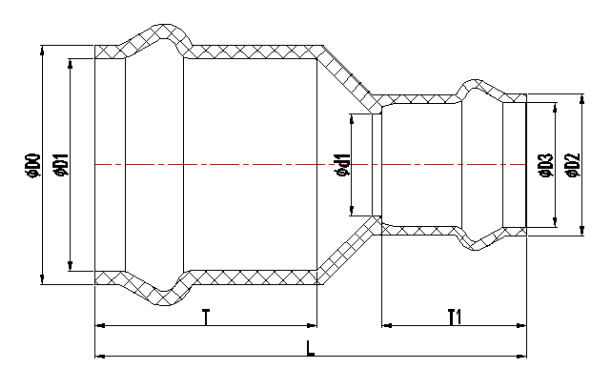

雙承異徑PN10
| 尺寸（De） | 外形尺寸 | |||||||
| D0 | D1 | D2 | D3 | d1 | T1 | T | L | |
| 75*63 | 88.50 | 77.50 | 74.50 | 65.30 | 62.00 | 76.00 | 84.50 | 168.00 |
| 90*63 | 105.50 | 92.50 | 74.50 | 65.30 | 62.00 | 76.00 | 95.00 | 194.00 |
| 90*75 | 105.50 | 92.50 | 88.50 | 77.50 | 73.50 | 84.50 | 95.00 | 200.00 |
| 110*63 | 125.70 | 111.50 | 74.50 | 65.30 | 62.00 | 76.00 | 122.00 | 232.00 |
| 110*75 | 125.70 | 111.50 | 88.50 | 77.50 | 73.50 | 84.50 | 122.00 | 236.00 |
| 110*90 | 125.70 | 111.50 | 105.50 | 92.50 | 88.50 | 95.00 | 122.00 | 238.00 |
| 160*110 | 181.50 | 162.30 | 125.70 | 111.50 | 108.00 | 122.00 | 141.00 | 312.00 |
| 200*110 | 225.00 | 202.50 | 125.70 | 111.50 | 108.00 | 122.00 | 152.00 | 335.50 |
| 200*160 | 225.00 | 202.50 | 181.50 | 162.30 | 158.00 | 141.00 | 152.00 | 300.00 |
| 225*110 | 251.50 | 227.50 | 125.70 | 111.50 | 108.00 | 122.00 | 139.00 | 358.00 |
| 225*160 | 251.50 | 227.50 | 181.50 | 162.30 | 158.00 | 141.00 | 139.00 | 346.00 |
| 225*200 | 251.50 | 227.50 | 225.00 | 202.50 | 197.00 | 152.00 | 139.00 | 389.25 |
| 250*110 | 276.50 | 252.30 | 125.70 | 111.50 | 108.00 | 122.00 | 152.00 | 387.00 |
| 250*160 | 276.50 | 252.30 | 181.50 | 162.30 | 158.00 | 141.00 | 152.00 | 375.50 |
| 250*200 | 276.50 | 252.30 | 225.00 | 202.50 | 197.00 | 152.00 | 152.00 | 389.00 |
| 250*225 | 276.50 | 252.30 | 251.50 | 227.50 | 221.00 | 139.00 | 152.00 | 371.75 |
| 315*110 | 347.80 | 318.30 | 125.70 | 111.50 | 108.00 | 122.00 | 198.00 | 444.60 |
| 315*160 | 347.80 | 318.30 | 181.50 | 162.30 | 158.00 | 141.00 | 198.00 | 436.00 |
| 315*200 | 347.80 | 318.30 | 225.00 | 202.50 | 197.00 | 152.00 | 198.00 | 454.00 |
| 315*225 | 347.80 | 318.30 | 251.50 | 227.50 | 221.00 | 139.00 | 198.00 | 458.00 |
| 315*250 | 347.80 | 318.30 | 276.50 | 252.30 | 247.00 | 152.00 | 198.00 | 458.00 |
| 355*200 | 388.50 | 356.63 | 225.00 | 202.50 | 197.00 | 152.00 | 235.00 | 455.00 |
| 355*315 | 388.50 | 356.63 | 347.80 | 318.30 | 312.00 | 198.00 | 235.00 | 476.00 |
| 產品名稱 | 尺寸 | 包裝量 | 長（cm) | 寬 | 高 |
| 雙承異徑PN10 | De75*63 | 30 | 48.5 | 36 | 32 |
| De90*63 | 21 | 48.5 | 36 | 32 | |
| De90*75 | 36 | 57 | 42 | 43 | |
| De110*63 | 18 | 41 | 41 | 52.5 | |
| De110*75 | 18 | 41 | 41 | 52.5 | |
| De110*90 | 18 | 41 | 41 | 52.5 | |
| De160*110 | 6 | 53 | 38 | 35.5 | |
| De200*110 | 4 | 50 | 27 | 52 | |
| De200*160 | 4 | 49 | 49 | 38 | |
| De225*110 | 4 | 54 | 31 | 53 | |
| De225*160 | 4 | 57 | 32 | 54 | |
| De225*200 | 4 | 57 | 57 | 38 | |
| De250*110 | 2 | 57 | 32 | 41 | |
| De250*160 | 2 | 62 | 33 | 42 | |
| De250*200 | 2 | 62 | 33 | 42 | |
| De250*225 | 2 | 58.5 | 30 | 38.5 | |
| De315*110 | 2 | 69 | 40 | 48 | |
| De315*160 | 2 | 69 | 40 | 48 | |
| De315*200 | 1 | 41 | 41 | 47 | |
| De315*225 | 1 | 41 | 41 | 47 | |
| De315*250 | 1 | 41 | 41 | 47 | |
| De355*200 | 1 | 45 | 45 | 46 | |
| De355*315 | 1 | 45 | 45 | 51 |
