給水增接口
產(chǎn)品中心
詳情頁

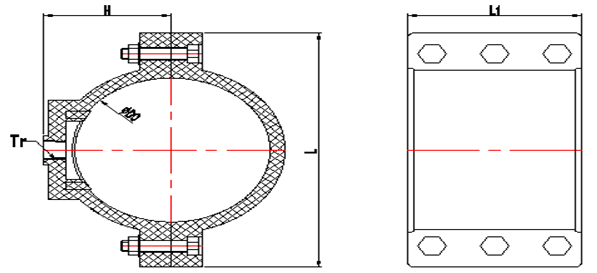

| 尺寸（De） | 外形尺寸（mm） | |||||
| D0 | H | L | L1 | Tr | 螺紋尺寸 | |
| 63*1" | 63.00 | 65.30 | 138.50 | 89.30 | 1" | M12*40 |
| 75*1" | 75.00 | 63.50 | 143.50 | 89.30 | 1" | M12*40 |
| 75*1-1/2" | 75.00 | 63.50 | 143.50 | 89.30 | 1-1/2" | M12*40 |
| 90*1/2" | 90.00 | 74.00 | 159.70 | 68.00 | 1/2" | M12*40 |
| 90*3/4" | 90.00 | 74.00 | 159.70 | 68.00 | 3/4" | M12*40 |
| 90*1" | 90.00 | 74.00 | 159.70 | 68.00 | 1" | M12*40 |
| 90*1-1/2" | 90.00 | 74.00 | 159.70 | 89.50 | 1-1/2" | M12*40 |
| 110*1/2" | 110.00 | 78.00 | 198.00 | 109.50 | 1/2" | M16*50 |
| 110*3/4" | 110.00 | 78.00 | 200.00 | 109.50 | 3/4" | M16*50 |
| 110*1" | 110.00 | 81.00 | 198.00 | 109.50 | 1" | M16*50 |
| 110*1-1/2" | 110.00 | 91.00 | 199.00 | 108.00 | 1-1/2" | M16*50 |
| 110*2" | 110.00 | 91.00 | 198.00 | 109.50 | 2" | M16*50 |
| 110*2-1/2" | 110.00 | 91.00 | 198.00 | 109.50 | 2-1/2" | M16*50 |
| 125*1-1/2" | 125.00 | 99.00 | 225.00 | 110.00 | 1-1/2" | M16*55 |
| 125*2" | 125.00 | 99.00 | 225.00 | 110.00 | 2" | M16*55 |
| 125*2-1/2" | 125.00 | 99.00 | 225.00 | 110.00 | 2-1/2" | M16*55 |
| 160*1/2" | 160.00 | 104.50 | 253.00 | 120.00 | 1/2" | M16*55 |
| 160*3/4" | 160.00 | 104.50 | 253.00 | 120.00 | 3/4" | M16*55 |
| 160*1" | 160.00 | 104.50 | 253.00 | 120.00 | 1" | M16*55 |
| 160*1-1/2" | 160.00 | 118.50 | 253.00 | 120.00 | 1-1/2" | M16*55 |
| 160*2" | 160.00 | 114.00 | 253.00 | 120.00 | 2" | M16*55 |
| 160*2-1/2" | 160.00 | 118.50 | 253.00 | 120.00 | 2-1/2" | M16*55 |
| 200*1-1/2" | 200.00 | 135.00 | 317.00 | 130.00 | 1-1/2" | M20*70 |
| 200*2" | 200.00 | 138.00 | 317.00 | 130.00 | 2" | M20*70 |
| 200*2-1/2" | 200.00 | 140.00 | 317.00 | 130.00 | 2-1/2" | M20*70 |
| 225*1-1/2" | 225.00 | 150.00 | 335.00 | 140.00 | 1-1/2" | M20*70 |
| 225*2" | 225.00 | 152.00 | 335.00 | 140.00 | 2" | M20*70 |
| 225*2-1/2" | 225.00 | 168.00 | 335.00 | 140.00 | 2-1/2" | M20*70 |
| 250*2" | 250.00 | 170.00 | 351.00 | 141.00 | 2" | M20*80 |
| 250*2-1/2" | 250.00 | 170.00 | 351.00 | 141.00 | 2-1/2" | M20*80 |
| 250*3" | 250.00 | 170.00 | 351.00 | 141.00 | 3" | M20*80 |
| 315*110 | 315.00 | 240.00 | 467.00 | 160.00 | M20*90 | |
| 315*160 | 315.00 | 247.00 | 467.00 | 238.00 | M20*90 | |
| 315*2" | 315.00 | 200.00 | 472.00 | 158.00 | 2" | M20*90 |
| 315*3" | 315.00 | 205.00 | 472.00 | 158.00 | 3" | M20*90 |
| 315*4" | 315.00 | 205.00 | 472.00 | 158.00 | 4" | M20*90 |
| 400*200 | 400.00 | 320.00 | 545.00 | 275.00 | M20*90 | |
