給水由任
產(chǎn)品中心
詳情頁

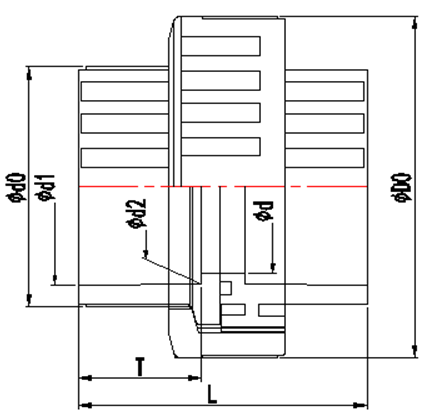

| 尺寸（De） | 外形尺寸（mm） | ||||||
| D0 | d0 | d1 | d2 | d | T | L | |
| 20 | 45.50 | 26.00 | 20.24 | 19.96 | 19.00 | 17.00 | 53.00 |
| 25 | 54.50 | 32.00 | 25.24 | 24.95 | 24.00 | 19.50 | 59.80 |
| 32 | 65.00 | 39.50 | 32.25 | 31.95 | 31.00 | 23.00 | 68.50 |
| 40 | 75.50 | 48.50 | 40.28 | 39.95 | 39.00 | 27.00 | 80.50 |
| 50 | 88.50 | 59.00 | 50.33 | 49.94 | 49.00 | 32.00 | 94.00 |
| 63 | 102.00 | 74.50 | 63.34 | 62.93 | 62.00 | 38.50 | 110.00 |
| 75 | 122.60 | 86.00 | 75.35 | 74.93 | 73.50 | 44.50 | 104.70 |
| 90 | 140.70 | 101.20 | 90.38 | 89.93 | 88.50 | 52.00 | 121.10 |
| 110 | 163.60 | 122.20 | 110.42 | 109.92 | 108.00 | 62.00 | 147.00 |
| 產(chǎn)品名稱 | 尺寸 | 包裝量 | 長（cm) | 寬(cm) | 高(cm) |
| 由任PN10 | De20 | 350 | 43.5 | 31 | 30 |
| De25 | 180 | 43.5 | 31 | 30 | |
| De32 | 120 | 43.5 | 31 | 30 | |
| De40 | 88 | 43.5 | 31 | 30 | |
| De50 | 82 | 53 | 38 | 35.5 | |
| De63 | 40 | 44.5 | 33 | 34.5 | |
| De75 | 40 | 53 | 38 | 35.5 | |
| De90 | 27 | 55 | 55 | 27 | |
| De110 | 18 | 50 | 50 | 31 |
