給水管帽
產品中心
詳情頁

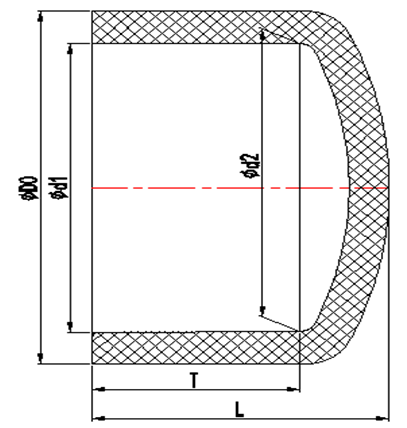

| 尺寸（De） | 外形尺寸 | ||||
| D0 | d1 | d2 | T | L | |
| 20 | 24.50 | 20.24 | 19.96 | 17.00 | 21.20 |
| 25 | 29.80 | 25.24 | 24.95 | 19.50 | 24.80 |
| 32 | 37.10 | 32.25 | 31.95 | 23.00 | 30.00 |
| 40 | 45.80 | 40.28 | 39.95 | 27.00 | 35.00 |
| 50 | 56.70 | 50.33 | 49.94 | 32.00 | 42.00 |
| 63 | 70.30 | 63.34 | 62.93 | 38.50 | 50.40 |
| 75 | 83.30 | 75.35 | 74.93 | 44.50 | 58.50 |
| 90 | 100.10 | 90.38 | 89.93 | 52.00 | 68.30 |
| 110 | 119.80 | 110.42 | 109.92 | 62.00 | 80.00 |
| 125 | 136.38 | 125.52 | 124.93 | 69.50 | 91.00 |
| 140 | 151.00 | 140.58 | 139.88 | 77.00 | 101.00 |
| 160 | 173.50 | 160.62 | 159.87 | 87.00 | 116.00 |
| 180 | 202.60 | 180.81 | 179.91 | 97.00 | 143.00 |
| 200 | 220.00 | 200.90 | 199.85 | 107.00 | 150.00 |
| 225 | 243.30 | 226.02 | 224.83 | 119.50 | 156.00 |
| 250 | 273.70 | 251.15 | 249.41 | 132.00 | 185.00 |
| 280 | 315.00 | 281.46 | 280.16 | 147.00 | 213.00 |
| 315 | 343.50 | 316.55 | 315.05 | 165.00 | 216.00 |
| 355 | 384.60 | 356.63 | 355.03 | 183.50 | 255.50 |
| 400 | 430.70 | 401.60 | 400.00 | 208.00 | 295.00 |
| 產品名稱 | 尺寸 | 包裝量 | 長 | 寬 | 高 |
| 管帽PN10 | De20 | 2,100 | 43.5 | 31 | 30 |
| De25 | 1,400 | 43.5 | 31 | 30 | |
| De32 | 660 | 43.5 | 31 | 30 | |
| De40 | 850 | 53 | 38 | 35.5 | |
| De50 | 490 | 53 | 38 | 35.5 | |
| De63 | 320 | 53 | 38 | 38 | |
| De75 | 196 | 53 | 38 | 38 | |
| De90 | 95 | 53 | 38 | 31.5 | |
| De110 | 60 | 53 | 38 | 38 | |
| De125 | 36 | 53 | 38 | 35.5 | |
| De140 | 36 | 45 | 45 | 36.5 | |
| De160 | 18 | 53 | 38 | 31.5 | |
| De180 | 16 | 40.5 | 40.5 | 49 | |
| De200 | 12 | 45 | 45 | 39 | |
| De225 | 12 | 50 | 50 | 43 | |
| De250 | 8 | 56.5 | 56 | 34.5 | |
| De280 | 4 | 62 | 35 | 42.5 | |
| De315 | 4 | 72 | 37 | 43 | |
| De355 | 2 | 41 | 41 | 47 | |
| De400 | 2 | 45.5 | 45.5 | 55.5 |
