給水補芯
產品中心
詳情頁

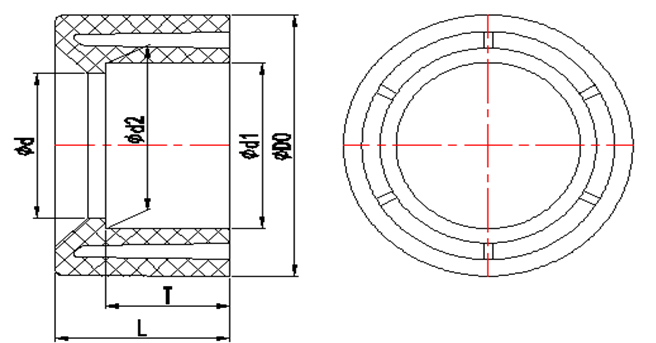

| 尺寸（De） | 外形尺寸（mm） | |||||
| D0 | d1 | d2 | d | T | L | |
| 25*20 | 25.10 | 20.24 | 19.96 | 19.00 | 17.00 | 19.00 |
| 32*25 | 32.20 | 25.24 | 24.95 | 24.00 | 19.50 | 22.20 |
| 40*32 | 40.10 | 32.25 | 31.95 | 31.00 | 23.00 | 26.50 |
| 50*40 | 50.06 | 40.28 | 39.95 | 39.00 | 27.00 | 30.60 |
| 63*50 | 63.10 | 50.33 | 49.94 | 49.00 | 32.00 | 38.00 |
| 75*63 | 75.10 | 63.34 | 62.93 | 62.00 | 38.50 | 44.00 |
| 90*75 | 90.10 | 75.35 | 74.93 | 73.00 | 44.50 | 51.00 |
| 110*90 | 110.10 | 90.38 | 89.93 | 88.50 | 52.00 | 60.50 |
| 125*110 | 125.10 | 110.42 | 109.92 | 108.00 | 62.00 | 68.50 |
| 140*110 | 140.10 | 110.42 | 109.92 | 108.00 | 62.00 | 76.70 |
| 140*125 | 140.10 | 125.52 | 124.93 | 123.00 | 69.50 | 76.70 |
| 160*110 | 160.10 | 110.42 | 109.92 | 108.00 | 62.00 | 86.00 |
| 160*140 | 160.10 | 140.58 | 139.88 | 138.00 | 77.00 | 86.00 |
| 180*160 | 180.10 | 160.62 | 159.87 | 158.00 | 87.00 | 96.00 |
| 200*160 | 200.10 | 160.62 | 159.87 | 158.00 | 87.00 | 106.00 |
| 200*180 | 200.10 | 180.81 | 179.91 | 178.50 | 97.00 | 106.00 |
| 225*160 | 225.20 | 160.62 | 159.87 | 158.00 | 87.00 | 119.80 |
| 225*200 | 225.20 | 200.90 | 199.85 | 197.00 | 107.00 | 118.00 |
| 250*200 | 250.20 | 200.90 | 199.85 | 197.00 | 107.00 | 128.40 |
| 250*225 | 250.20 | 226.02 | 224.83 | 221.00 | 119.50 | 128.40 |
| 280*225 | 280.10 | 226.02 | 224.83 | 221.00 | 119.50 | 145.50 |
| 315*280 | 315.10 | 281.46 | 280.16 | 278.00 | 147.00 | 164.00 |
| 400*315 | 400.10 | 316.55 | 315.05 | 312.00 | 165.00 | 216.00 |
| 產品名稱 | 尺寸 | 包裝量 | 長（cm) | 寬(cm) | 高(cm) |
| 補芯 PN10 | De25*20 | 2,100 | 43.5 | 31 | 30 |
| De32*25 | 1,080 | 43.5 | 31 | 30 | |
| De40*32 | 780 | ||||
| De50*40 | 448 | 41 | 41 | 24 | |
| De63*50 | 231 | 43.5 | 31 | 27 | |
| De75*63 | 135 | 43.5 | 31 | 30 | |
| De90*75 | 138 | 53 | 38 | 35.5 | |
| De110*90 | 64 | 47 | 47 | 26 | |
| De125*110 | 60 | 53 | 38 | 35.5 | |
| De140*110 | 36 | 44 | 44 | 31 | |
| De140*125 | 36 | 44 | 44 | 31 | |
| De160*110 | 36 | ||||
| De160*140 | 36 | 50 | 50 | 36 | |
| De180*160 | 20 | 53 | 38 | 38 | |
| De200*160 | 20 | 57 | 42 | 43 | |
| De200*180 | 20 | 57 | 42 | 43 | |
| De225*160 | 8 | 47 | 47 | 26 | |
| De225*200 | 8 | 47 | 47 | 26 | |
| De250*200 | 8 | 51.5 | 51.5 | 27.5 | |
| De250*225 | 8 | 51.5 | 51.5 | 27.5 | |
| De280*225 | 6 | 57 | 32 | 46 | |
| De315*280 | 4 | 65 | 33.5 | 34 | |
| De400*315 | 2 | 41.5 | 41.5 | 43 |
